DIY HORIZONTAL VAPOR MAKER 0-15W

213pages on
this wiki
Add New Page
Comment1 Share

The Protank 3 Mini is still one of the most affordable and reliable ecigs on the market. This very easy DIY vapor maker works great for various bubble effects. This photo essay also contains info on sourcing tubes and material you may not be able to find.

Finalmake2

Stealth and beautifull

Finalmake3

Very productive for various bubble effects.


Finalmake4

I found a plastic tube 15.5mm in diameter. After measuring then length of the ecig (with the moutpioece) add an inch to the length and snip off the rest

Finalmake5

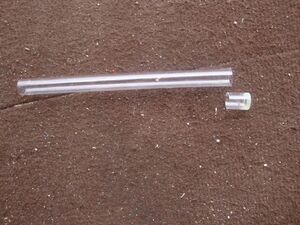

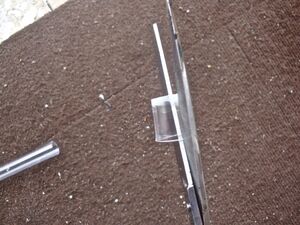

Cut the short piece longways as shown


Finalmake6

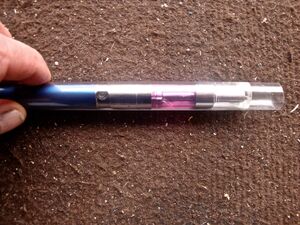

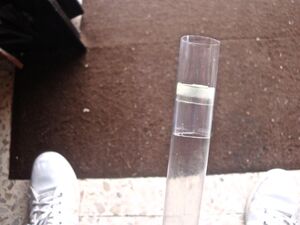

Slide you ecig inside the tube so it is nearly flush with the tube at the bottom. Slide the short plastic piece in at the time until it stops against the ecig.

Finalmake7

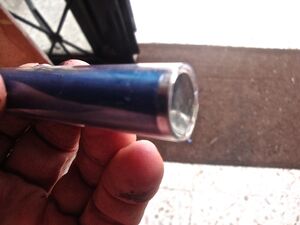

The ecig needs to be almost flush at the bottom as show


Finalmake8

Remove the ecig carefully so you do not move the plastic piece you inserted

Finalmke9

With superglue, drop 3 drops in various spots at the edge of the inserted piece--the glue will be drawn in between the inseret and the tube to permanently hold it in place.


Finalmake10

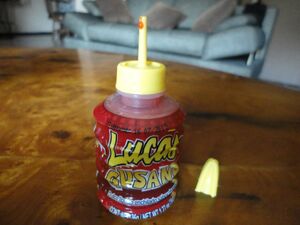

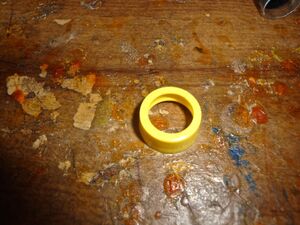

Yellow cap used from a bottle of liquid candy. Bottle is also perfectly suited to use to refill fluid in resevoir tip (it is accordian style)

Finalmake11

I was lucky enough to source this cap from the liquid candy squeeze bottle


Finalmake12

I used a permanent black marker to color the cap

Finalmake13pg

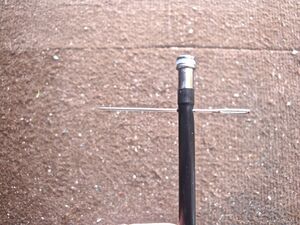

With a large sewing needle poke 4 holes all the way thru the straw so you have a total of 8 holes close to the end of the mouthpiece. VERY IMPORTANT for added airflow. Add more air holes for more vapor faster according to what result you like best.


Finalmake14

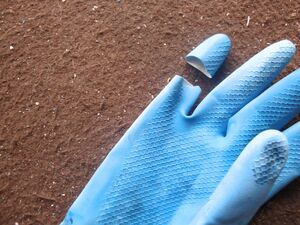

Fingertip from an ordinary kitchen rubber glove

Finalmake15

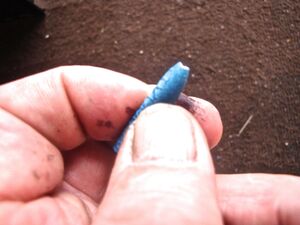

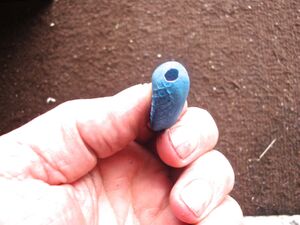

Fold the fingertip a couple ot times and snip of the very, very tip (snip off less than you think you need to).


Finalmake16

The hole should be slightly smaller than the diameter of the straw you use

Finalmake17

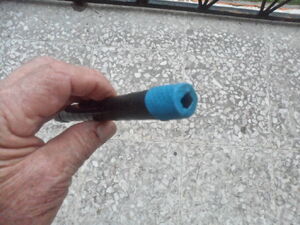

Pull the rubber tip down over the end of the tube as shown


Finalmake18

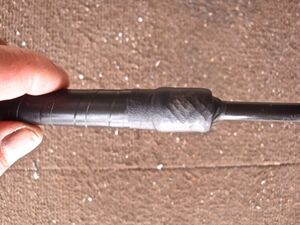

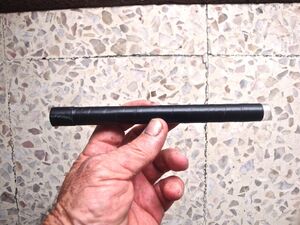

Tube wrapped with black electrician's tape in a spiral

Finalmeal19

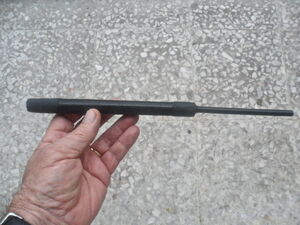

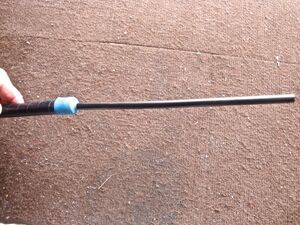

You can now insert your ecig with straw attached to mouthpiece. Of course, you can shorten the straw if you want.


Finalmake19a

I wanted this entire design to be black. Black tube, black straw and black rubber tip. I did not want to paint anything , so, I found me some black surgical gloves believe it or not.

Finalmake20

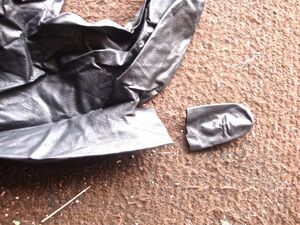

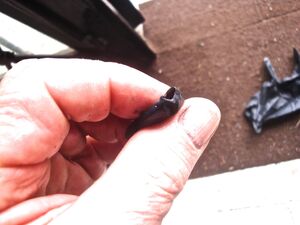

As with the kitchen glove, fold and snip


Finalmake21

Since the black surgical glove is not thick or strong enough to do the job, I used it to cover the stronger kitchen glove tip.

Finalmake22

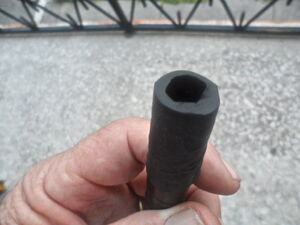

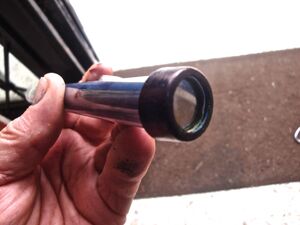

Cap the other end of the tube. The cap is the only part that has been colored black. Note: if you cannot find a cap as shown you can sleeave that end of the tube with a small straw piece or any other method that doees not block the air flow


Finalmake23

With the added air holes at the base of the straw and a 1.5 ohm coil you get lots of vapor fast. Since you know approx where the battery button is you can squeeze the tube anywhere in that general area to make your new vapor maker function.

Finalmake24

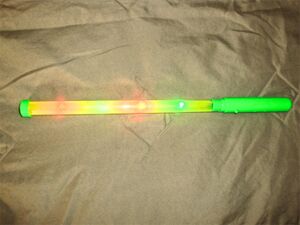

I child's light saber as a source for tubes. I have made tubes from plastic bottles, cardboard and even a sheet of paper. Sourcing tubing is not difficult.


Finbalmake25

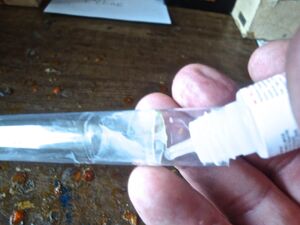

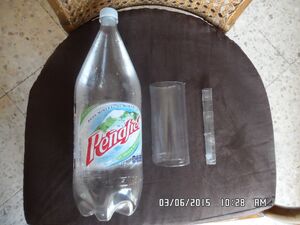

You can use a 2-liter plastic bottle, cutting the middle section out. Use approx. a 2 1/2" wide piece of the middle sectio for your main tube. If you are not using a jig to form your main tube you can wrap the plastic piece around your ecig loosely so you create a 2mm gap between the ecig and your main tube for proper airflow and which will not keep the battery button activated when not wanted. Scotch tape works great to wrap the tube with.

Finalmake26

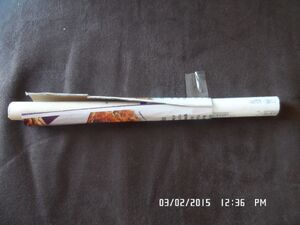

You can use a thin piece of cardboard also. The cardboard tube will overlap. Start taping it to size snugly (but not too snug). Start at the very end of the cardboard and continuing the full length of the tube. After you are finished wrapping the tube with scotch tape the E-Cig should slide in and out of the tube freely


SAM 3272

A steady stream of "pearlized" bubbles
